Showing 17–32 of 43 results
The air tank of the horizontal flow dissolved air flotation equipment produces dissolved air water, which is released into the water to be treated through the releaser to reduce pressure. The air dissolved in the water is released from the water to form tiny bubbles of 20-40um. The microbubbles combine with the suspended matter in…
Product Overview The IC reactor is a new type of anaerobic reactor after UASB and EGSB. The wastewater to be treated is pumped into the reactor from the bottom of the reactor using an efficient water distribution system and mixed with the anaerobic granular sludge in the reactor. The IC anaerobic reactor is composed of…
Inclined tube sedimentation tank is an efficient solid-liquid separation equipment, which is widely used in sewage treatment. Its core principle is to use the shallow pool theory and laminar flow principle, and by setting a large number of inclined parallel tubular fillers (inclined tubes) in the sedimentation area, the single large sedimentation space of the…

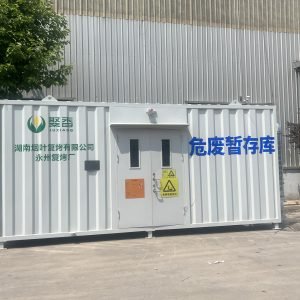

Hazardous waste temporary storage room is a facility specially used for storing and treating hazardous waste. Hazardous waste refers to waste that poses potential hazards to human health and the environment, such as toxic, harmful, flammable, explosive, etc. The role of hazardous waste temporary storage room is to ensure that hazardous waste does not cause…
Integrated MBR membrane bioreactor (MBR) is a new type of sewage treatment system that combines membrane separation technology with biological treatment technology. It replaces the secondary sedimentation tank at the end of the traditional biological treatment process with membrane components to maintain a higher concentration of activated sludge in the bioreactor, thereby increasing the organic…
The integrated pump station (hereinafter referred to as the pump station) is a turnkey new environmentally friendly new generation pump station for lifting sewage, rainwater, drinking water, wastewater, etc. It is designed, manufactured, assembled and transported to the site for installation. The pump station series products have modern product characteristics such as short construction period,…
Integrated sewage treatment equipment is a device that integrates the primary sedimentation tank, I and II contact oxidation tanks, secondary sedimentation tanks, and sludge tanks, and performs aeration in the I and II contact oxidation tanks, so that the contact oxidation method and the activated sludge method are effectively combined, saving the equipment for finding…
The integrated water purifier integrates the essence of flocculation, sedimentation, sewage discharge, backwashing, water collection and filtration processes. It is a series of water purification devices that can achieve fully automatic operation without human operation. It is an important unit for realizing the automated management of water plants. When equipped with JY type automatic dosing…

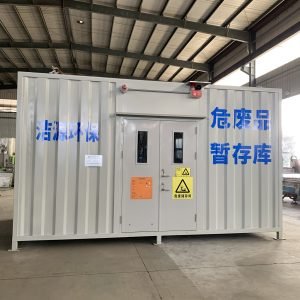

Laboratory hazardous waste temporary storage room is a space specially used for storing and treating hazardous waste generated in the laboratory. Its design and operation must strictly comply with relevant safety standards and environmental protection requirements. The following is a detailed introduction to the laboratory hazardous waste temporary storage room: Basic concepts and functions The…
The integrated magnetic coagulation and sedimentation equipment is based on the traditional flocculation and sedimentation, and magnetic seeds are added to the process to make it efficiently co-precipitate with the flocs. The effective combination of magnetic seeds, suspended matter and colloids eventually forms high-density flocs. Relying on gravity and the principle of inclined plate sedimentation,…
Mechanical filter is a kind of equipment widely used in various fields, mainly used to remove impurities and pollutants in fluids. It mainly works through physical filtration mechanism, relying on filter screens, filter elements and other filter media to intercept large visible particles and impurities, and absorb residual chlorine, odor and heavy metal ions in…
Mechanical screen dirt remover is a key equipment for sewage treatment, mainly used to remove large-volume debris in sewage to ensure the smooth progress of subsequent treatment processes. Its core components include the screen body, drive device, rake teeth and cleaning mechanism.
Structural composition
The mechanical screen dirt remover is mainly composed of the screen body, drive device, rake teeth and cleaning mechanism. The screen body is composed of parallel stainless steel bars, and the interval can be adjusted according to needs, usually between 1-100mm. The drive device provides power, and the common ones are motor drive and hydraulic drive. The rake teeth are inserted between the bars to hook the debris and lift it to the top, and the cleaning mechanism removes the debris through the scraper and flushing nozzle.
Working principle

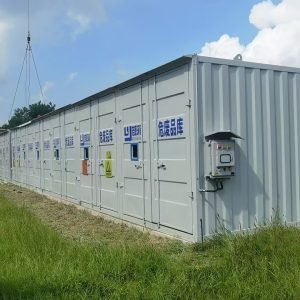

Medical waste temporary storage room is an important facility for temporary storage of medical waste in medical institutions. Its design and construction must strictly comply with relevant health and safety standards. Design standards and functional features . Compliance design: The medical waste temporary storage room is strictly built in accordance with WS 589-2018 “Medical waste…
Ozone micro-nano bubble integrated equipment, as an innovative technology in the current water treatment field, is gradually becoming a key tool for solving water quality problems with its high efficiency, environmental protection and intelligence. Equipment Principle The ozone micro-nano bubble integrated equipment integrates ozone generator, micro-nano bubble generator, oxygen generator and mixing device, and realizes…
The plate and frame sludge filter press is an efficient sewage treatment equipment, mainly used for sludge dewatering. Its core components include frame, filter plate, filter cloth, hydraulic system and control system. The frame is usually made of high-strength carbon steel with good load-bearing capacity; the filter plate is made of corrosion-resistant material, which can…
Thermal combustion equipment (RTO for short) oxidizes organic matter (VOCs) in waste gas into corresponding carbon dioxide and water at high temperature, thereby purifying waste gas and recovering the heat released when the waste gas is decomposed. RTO has a waste gas decomposition efficiency of more than 99%, a heat recovery efficiency of more than…
