Complex industrial exhaust often contains multiple pollutants: acid gases, VOCs, particulate matter, and odorous compounds. Single‑technology solutions cannot guarantee full compliance. Our multi‑stage cascade systems combine scrubbing, adsorption, thermal oxidation, and biological treatment to achieve simultaneous removal and ensure clean discharge.
Multi‑Stage Cascade Technologies

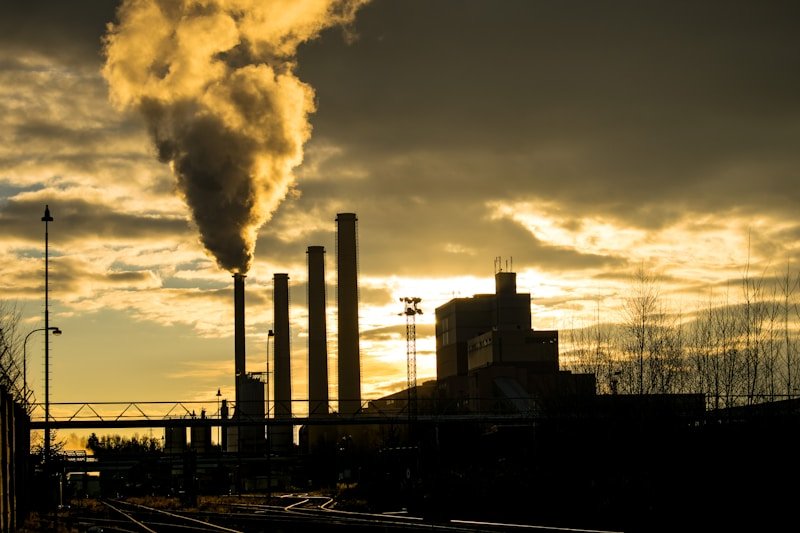

Power Plant / Boiler Flue Gas
- Process: fabric filter + spray desulfurization + SCR denitrification
- Simultaneous removal of particulates, SO₂, and NOx
- Meets ultra‑low emission standards (<5 mg/m³ dust, <35 mg/m³ SO₂)
- Ammonia slip control, high catalyst durability
- Ideal for coal‑fired boilers, industrial heaters, and waste‑to‑energy plants

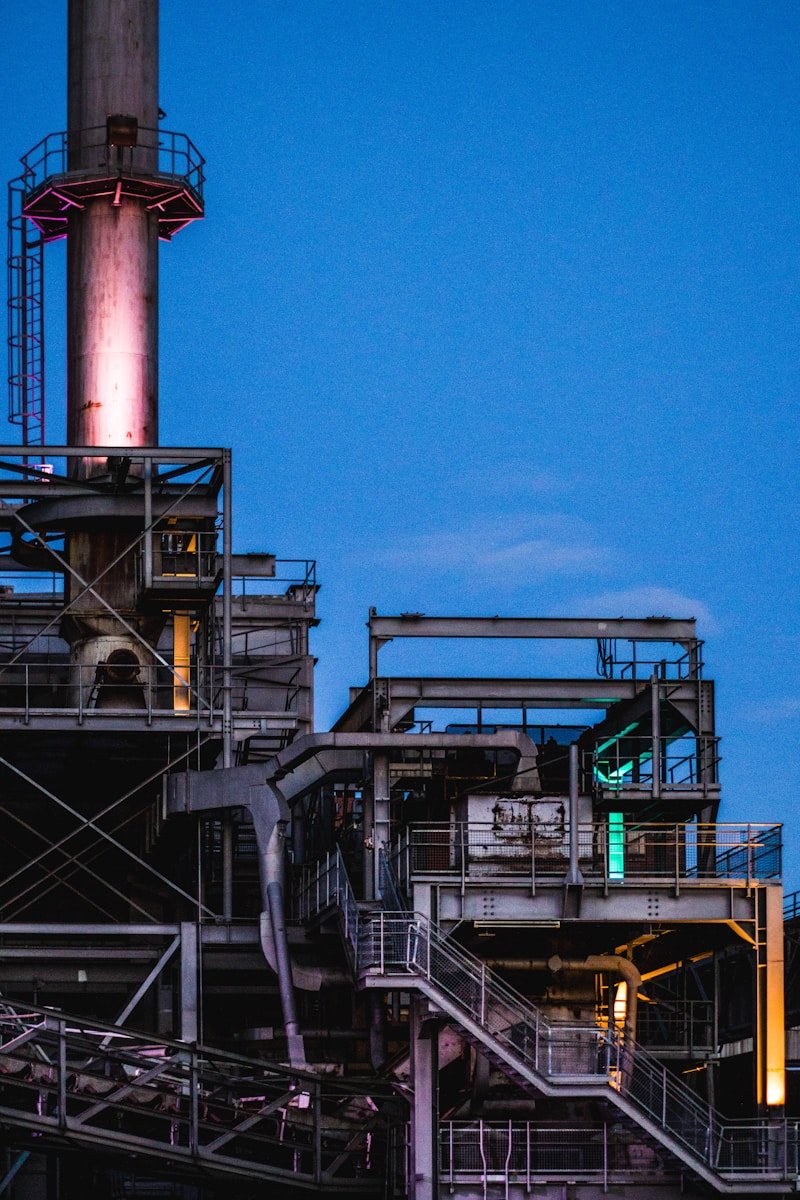

Coating / Painting & Mixed Exhaust
- Process: dry filtration + zeolite rotor concentrator + RTO combustion + alkali scrubber
- Removes paint mist, VOCs, and acidic by‑products from combustion
- Concentrates large‑volume, low‑concentration streams to reduce RTO size
- Destruction efficiency >99% for VOCs
- Recovers heat for preheating or plant heating

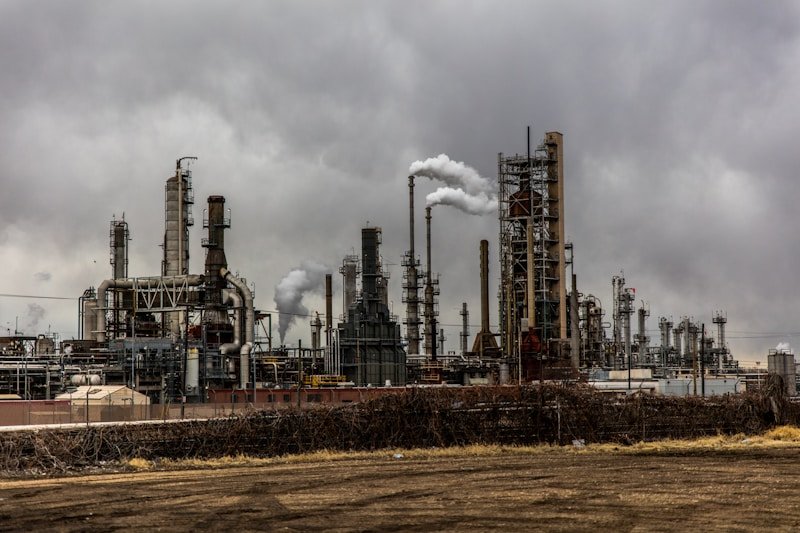

Pharmaceutical / Chemical Complex Exhaust
- Five‑stage process: alkali washing → condensation → adsorption concentration → RTO → deep polishing
- Treats mixed organic & inorganic pollutants, halogenated VOCs
- Removes acid gases, high‑boiling solvents, and toxic compounds
- Resin / activated carbon adsorption for solvent recovery
- Suitable for batch operations with fluctuating compositions
Low‑Concentration Odor / Malodorous Gases
- Biofilter or biotrickling filter with natural microorganisms
- Degrades H₂S, NH₃, mercaptans, and other odorous compounds
- Low operating cost, no secondary pollution
- Long media life, minimal maintenance
- Ideal for WWTPs, composting, landfill, and food processing sites
Why Our Integrated Systems?
Multi‑Pollutant Removal
Simultaneously abates dust, acid gases, VOCs, and odorous substances in one integrated train – guaranteed compliance.
High Resource Recovery
Condensation and adsorption recovery of toluene, acetone, NMP, etc. A battery plant recovered 320 tons/year of NMP, creating $700k+ value.
Smart Monitoring & Energy Efficiency
Online gas analyzers, automated damper control, and heat recovery (RTO >95% thermal efficiency) reduce operating costs by up to 30%.
Core Equipment & Process Modules
Pre‑treatment & Scrubbing
- Spray towers / packed scrubbers: Alkali or acid washing for HCl, SO₂, NH₃, and particulates
- Dry / wet electrostatic precipitators: High‑efficiency fine dust removal (to <5 mg/m³)
- Quench systems: Rapid cooling of high‑temperature gases before adsorption or catalysis
- Applications: Flue gas desulfurization, halogen removal, particulate pre‑cleaning
Concentration & Destruction (RTO/RCO)
- Zeolite rotor concentrator: Turns large‑volume, low‑concentration VOCs into small‑volume, high‑concentration stream
- Regenerative Thermal Oxidizer (RTO): 95‑99% destruction efficiency, >95% heat recovery, self‑sustaining above 3 g/m³ VOC
- Regenerative Catalytic Oxidizer (RCO): Lower operating temperature (250‑400°C) for energy savings
- Applications: Paint shops, printing, chemical processing, pharmaceuticals
Condensation & Adsorption Recovery
- Multi‑stage condensation: Recovers high‑value solvents (toluene, acetone, ethyl acetate, NMP)
- Activated carbon / resin adsorption: Deep polishing and solvent recovery with steam or N₂ desorption
- Recovery efficiency: Up to 90‑95% for valuable organics
- Economic benefit: Recovered solvent can offset system operating costs within 1‑2 years
Biological Treatment & Odor Control
- Biofilter / biotrickling filter: Packed bed with specialized microorganisms for H₂S, NH₃, VOCs
- Low energy consumption (only fan power), no chemicals
- Long media life (3‑5 years) and easy maintenance
- Typical applications: Sewage treatment plants, waste transfer stations, rendering plants, livestock farms
Case Study: High‑Value Solvent Recovery in Battery Manufacturing
- Industry: Lithium‑ion battery electrode production (NMP solvent)
- Solution: Condensation + adsorption recovery system
- Result: 320 tons/year of NMP recovered, annual economic benefit > US$700,000
- Environmental impact: VOC emission reduced from 1200 mg/m³ to <10 mg/m³, payback period 1.5 years
Proven Performance & Compliance
Simultaneous Multi‑Pollutant Removal
Our integrated systems reduce dust to <5 mg/m³, SO₂ <35 mg/m³, NOx <50 mg/m³, VOCs <10 mg/m³, and odor removal >95%. All meet or exceed EPA, EU and local ultra‑low emission standards.
Reference – Petrochemical RTO project
Capacity: 120,000 Nm³/h · Pollutants: Mixed VOCs (aromatics, alkanes, esters) + small amount of H₂S. Solution: Alkali pre‑scrubber + zeolite rotor + RTO. The RTO achieved 98.5% destruction efficiency with self‑sustaining operation. Annual VOC emission reduction exceeded 400 tons, and the system saved $150,000/year in natural gas costs through heat recovery.
✓ Smart monitoring with continuous emission reporting · 99.3% online availability over 3 years · Zero odour complaints from neighbouring communities
What Our Clients Say
"The RTO + zeolite rotor system for our automotive paint shop cut VOC emissions from 180 mg/m³ to below 6 mg/m³. Heat recovery saves us $80,000 annually in gas costs."
"The biofilter solution at our wastewater plant completely eliminated H₂S odor complaints. Operating cost is negligible, and the neighbors finally stopped calling."
"After installing the condensation + RTO system for our chemical plant, we recovered 85% of acetone solvent. The system paid for itself in 18 months, and emissions are far below permit limits."
Frequently Asked Questions
Clean Air Starts Here
From complex chemical exhaust to municipal odor control – our team delivers integrated, cost‑effective solutions.
Contact us for a free technical consultation and compliance assessment.
